A Verilog Primer¶
Verilog is a HDL that can describe digital circuits with C-like syntax. It defines circuits at the RTL of abstraction.
Modules are the building blocks of Verilog designs. They are a means of abstraction and encapsulation for your design.
-
Consists of a port declaration and Verilog code to implement the desired functionality
-
Modules are created in Verilog file (.v) where the filename matches the module name.
Ports allow communication between a module and its environment. Each port has a name and a type
-
Input
-
Output
-
Inout
Ports for a module are declared in the port declaration
module full_adder (input x, input y, input cin, output s, output cout);
// Verilog code here has access to inputs
// Verilog code here has access to outputs
endmodule
Every Verilog design has a top-level module which sits at the highest level of the design hierarchy. The top-level module defines the I/O for the entire digital system. All the modules in your design reside inside the top-level module.
Verilog Module Instantiation¶
Modules can be instantiated inside other modules. The syntax used is
<module_name> <instance_name> (.port0(wire), .port1(wire), ...)
For example,
module top_level (input switch0,
input switch1,
input switch2,
output LED0,
output LED1);
full_adder add (
.x(switch0),
.y(switch1),
.cin(switch2),
.s(LED0),
.cout(LED1)
);
endmodule
Wire Nets¶
Wires are analogous to wires in a circuit you build by hand; they are used to transmit values between inputs and outputs. Declare wires before they are used. Wires can be scalar (1 bit), or they can be vectors
// 1-bit declaration a and b
wire a;
wire b;
wire [7:0] d; // 8-bit wire declaration
wire [31:0] e; // 32-bit wire declaration
We can declare signals that are more than 1 bit wide in Verilog with this general syntax:
[MSB bit index : LSB bit index]
now we can imagine how it deals with type annotations:
module two_bit_adder (input [1:0] x, input [1:0] y, output [2:0] sum);
wire [1:0] partial_sum;
wire carry_out;
endmodule
Gate Primitives¶
The following gate primitives exist in Verilog: and, or, xor, not, nand, nor, xnor. In general, the syntax is
<operator> (output, input1, input2) // two input gate
<operator> (output, input); // for not gate
For example, if we want to implement the Boolean equation \(f = a + b\):
wire a, b, f;
or (f, a, b);
Example: Full Adder¶

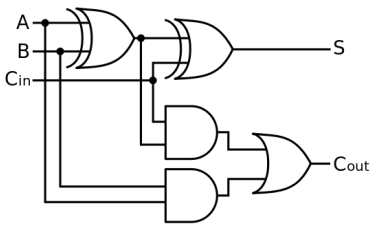

Here is a gate-level circuit schematic
In Verilog:
module full_adder (input a, input b, input cin, output s, output cout);
xor(s, a, b, cin);
wire xor_a_b;
wire cin_and;
wire and_a_b;
xor(xor_a_b, a, b);
and(cin_and, cin, xor_a_b);
and(and_a_b, a, b);
or(cout, and_a_b, cin_and);
endmodule
Behavioral Verilog¶
The full adder using structural Verilog can be a pain to write, but you will never have to write it that way. Behavioral Verilog constructs allow you to describe what you want a circuit to do at the RTL level of abstraction.
Assign Statements¶
Wires can be assigned to logic equations, other wires, or operations performed on wires. This is accomplished using assign statement. The left argument of the assign statement must be a wire, and cannot be an input wire. The right argument of the assign statement can be any expression created from Verilog operators and wires
module copy (input a, output b);
assign b = a;
endmodule
Verilog contains operators that can be used to perform arithmetic, form logic expressions, perform reductions/shifts, and check equality between signals
So a behavioral Verilog version of the full adder might look like
module full_adder (input x, input y, input cin, output s, output cout);
assign s = x ^ y ^ cin;
assign cout = (a && b) || (cin && (a ^ b));
endmodule
It gets even better
wire operand1 [31:0];
wire operand2 [31:0];
wire result [32:0];
assign result = operand1 + operand2
which described the 32-bit adder, but didn't specify the architecture or logic. The Verilog synthesizer wil turn the generalized addder into a FPGA specific netlist or an ASIC gate-level netlist.
Conditional Operator ?¶
The conditional operator allows us to define if-else logic in an assign statement
<condition> ? <expr_if_true> : <expr_if_false>
assign out = a > 10 ? 10 : a;
Example: output 0 if the two inputs are equal, output 1 if input a is less than input b, and output 2 if input a is greater than input a:
module equality_checker(input a [31:0], input b[31:0], output c [1:0]);
assign c = a == B ? 2'd0 : (a < b ? 2'd1 : 2'd2);
endmodule
Verilog Literals¶
Verilog defines a particular way of specifying literals:
[bit width]'[radix][literal]
Radix can be d (decimal), h (hex), o (octal), b (binary). It is critical to always match bit widths for operators and module connections, do not ignore these warnings from the tools
2'd1
16'hAD14
8'b01011010
Macros¶
Macros are similar to those in C. `include
is a preprocessor command to inject a Verilog source file at its location; often used to bring in a Verilog header file (.vh)
`define <Constant Name> is used to declare a synthesis-time constant; use these instead of putting "magic values" in RTL
`define <Macro function name>(ARGS) <Function body> is used to define a macro function that can generate RTL based on ARGS
`ifndef <NAME>, `define <NAME>, `endif is an include guard
Here is an example. In constants.vh:
`ifndef CONSTANTS // guard prevents header file from being included more than once
`define CONSTANTS
`define ADDR_BITS 16
`define NUM_WORDS 32
`define LOG2(x) \
(x <= 2) ? 1 : \
(x <= 4) ? 2 : \
(x <= 8) ? 3 : \
(x <= 16) ? 4 : \
(x <= 32) ? 5 : \
(x <= 64) ? 6 : \
-1
`endif
Then in design.v:
`include "constants.vh"
module memory (input [`ADDR_BITS - 1:0] address, output [`LOG2(`NUM_WORDS) - 1:0] data);
//implementation
endmodule
Reg Nets¶
There are two types of nets: wire and reg
Reg nets are required whenever a net must preserve state (i.e. in an always block). Wires are used for structural verilog (to connect inputs to outputs) and for continuous assignmnet:
reg x;
